 Elastomer Bellow Mechanical Seals

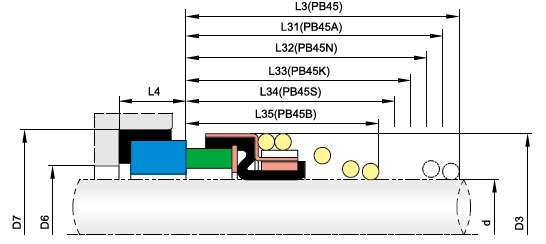

PB45

工作参数(Operating Conditions)
温度(Temperature) : -20℃ to +120℃
压力(Pressure) : ≤1.0MPa
速度(Speed) : ≤10m/s
材料(Materials)
静环(Stationary Ring) : V1,Q1,Q2,U2
动环(Rotary Ring) : B,A,Q1,Q2,U2
辅助密封(Secondary Seal) : V,P,E
弹簧及结构件(Spring and Metal Parts) : F,G
静环适合类型(Seat Types)
标准 (Standard) : L01,L03,L04
适用介质:清水、污水、油及其它弱腐蚀性介质。
Applications:Clean water,sewage water,oil and
other weakly corrosive fluids.
规格(Size): 0.375-4.000" / 10-100mm

Equivalent to:john crane type1a

john crane mg910tg50

43ce1
