John Crane 58B & AES M04S Mechanical Seals

FLEX MECH-SEAL(CHINA) Co.,Ltd. is specialized in mechanical seals products. You may interested in AES Mechanical Seals , Grundfos Pump Seals , Rubber Seals , Silicon Carbide Seals , Tungsten Carbide Seals , Seal for Power Plant , KSB Pump Seals , Carbon Graphite Seals .

Home -> O-ring Mechanical Seals -> John Crane 58B & AES M04S Mechanical Seals
PC19

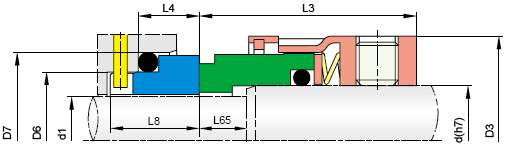

John Crane 58B & AES M04S Mechanical Seals size chart

工作参数(Operating Conditions)
温度(Temperature) : -20℃ to +180℃
压力(Pressure) : ≤2.5MPa
速度(Speed) : ≤15m/s
材料(Materials)
静环(Stationary Ring) : V1,Q1,Q2,U2
动环(Rotary Ring) : B,A,Q1,Q2
辅助密封(Secondary Seal) : V,P,E,M1,M2
静环适合类型(Seat Types)
标准 (Standard) : C09
可替换 (Alternative) : C10,C11,C17
适用介质:清水、污水、油及其它中等腐蚀性介质
Applications:Clean water,sewage water,oil and
other moderately corrosive fluids.
规格(Size): 14-100mm

Equivalent to:John Crane 58B

AES M04S
